AM 1200 - effective decentralized ventilation system

Ventilation need not always have a solely technical function. It can also play an active role in the function of the room. AM 1200 is a decentralised ventilation concept where the fresh air is combined with elegant design, which can be used for much more than you think.

AM 1200 is a floor-standing unit available as a horizontal and vertical version. With different types of design panels, the surface can be used as a whiteboard, message board, mirror – your imagination is the only limit!

Examples of applications

Offices

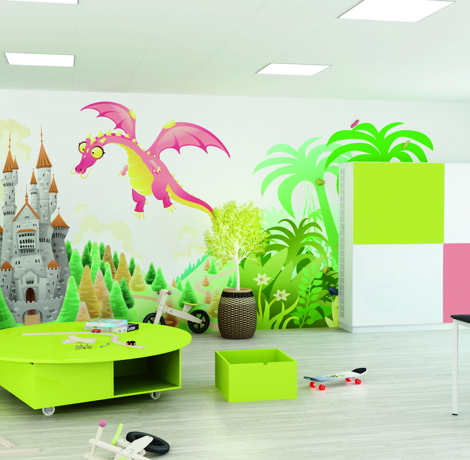

Meeting rooms

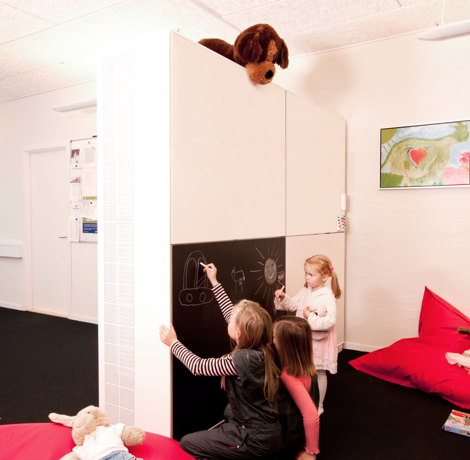

Institutions
Libraries

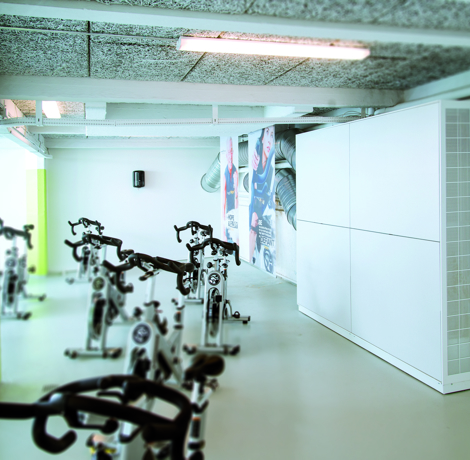

Spinning rooms, gyms and the like

Data AM 1200

Technical data

Technical data	Filter class	30 dB(A)	35 dB(A)

* At filter class, supply air/extract air: ePM10 75% / ePM10 75% ** With roof cap module
Maximum capacity Horizontalmodel, Ø400 mm right / left:	ePM10 75% ePM1 55% ePM1 80%	930 m³/h 837 m³/h 744 m³/h	1180 m³/h 1062 m³/h 944 m³/h
Maximum capacity Horizontalmodel, Ø400 mm center:	ePM10 75% ePM1 55% ePM1 80%	1050 m³/h 945 m³/h 840 m³/h	1310 m³/h 1179 m³/h 1048 m³/h
Maximum capacity Verticalmodel, Ø400 mm right / left:	ePM10 75% ePM1 55% ePM1 80%	870 m³/h 783 m³/h 696 m³/h	1130 m³/h 1017 m³/h 904 m³/h
Maximum capacity Verticalmodel, Ø400 mm center:	ePM10 75% ePM1 55% ePM1 80%	980 m³/h 882 m³/h 784 m³/h	1260 m³/h 1134 m³/h 1008 m³/h
Maximum capacity Verticalmodel, Ø315 mm right / left:**	ePM10 75% ePM1 55% ePM1 80%	820 m³/h 738 m³/h 656 m³/h	1060 m³/h 954 m³/h 848 m³/h
Maximum capacity Verticalmodel, Ø315 mm center:**	ePM10 75% ePM1 55% ePM1 80%	920 m³/h 828 m³/h 736 m³/h	1170 m³/h 1053 m³/h 936 m³/h
Throw length (0,2 m/s) - center	ePM10 75% ePM1 55% ePM1 80%	min. 3 m at 1000 m3/h max. 6,5 m at 1000 m3/h min. 4 m at 1300 m3/h max. 8 m at 1300 m3/h
Throw length (0,2 m/s) - right / left	ePM10 75% ePM1 55% ePM1 80%	min. 4 m at 1000 m3/h max. 9 m at 1000 m3/h min. 5,5 m at 1300 m3/h max. 11 m at 1300 m3/h
Nominal current*		1,4 A
Nominal power consumption*		254 W
Electrical connection		3 x 400 V + N + PE / 50 Hz
Duct connections		Ø400 mm
Condensate drain		Ø16 mm
Weight		Right/left variant: 545 kg Center variant: 630 kg
Counterflow heat exchanger		4 x Aluminium
Supply air filter		ePM10 75%, ePM1 55% or ePM1 80%
Extract air filter		ePM10 75%
Recommended fuse		3x13 A
Leakage current		<– 9 mA
Dimensions (WxHxD)		Horizontal: 496 x 2098 x 2427 mm
		Vertical: 496 x 2406 x 2427 mm

Electrical heating surface	Preheating function	Comfort heating function
Heat output	2500 W	1670 W
Thermal circuit breaker, aut. reset	75°C	75°C
Thermal circuit breaker, man. reset	120°C	120°C

Water heating surface	Comfort heating function
* Capacity at: supply/return temperature 60/40°C, water volume 107 l/h
Max. operating pressure	10 bar
Heat output	2454 W*
Connection dimension	1/2" (DN 15)
Materials pipes/fins	copper/aluminium
Open/close time, motor valve	60 s

Standard and options

Standard and options	AM 1200 V

Bypass	x
Electric preheating surface	o
Electric comfort heating surface	o
Water heating surface	o
CO2 sensor (built-in)	o
Hygrostat	o
Condensate pump	o
Spring-return motor on main air damper (supply and exhaust)	x
Counterflow heat exchanger(aluminium)	x
Energy meter	o
x : standard o : option

Throw length

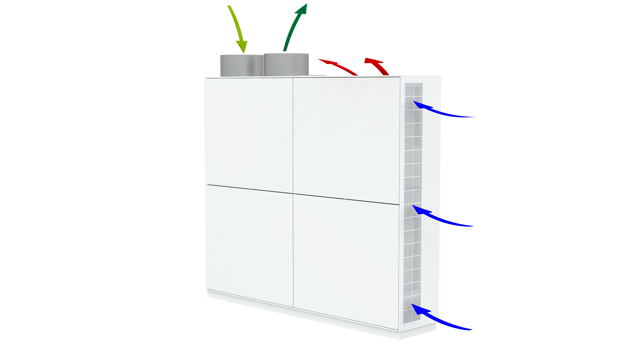

The AM 1200 unit spreads an air stream in different directions, depending on the given airflow. This can be seen in the illustration, in which the blue shading indicates throw length the different airflows.

1. Throw length seen from above
2. Throw length seen from the side

Versions

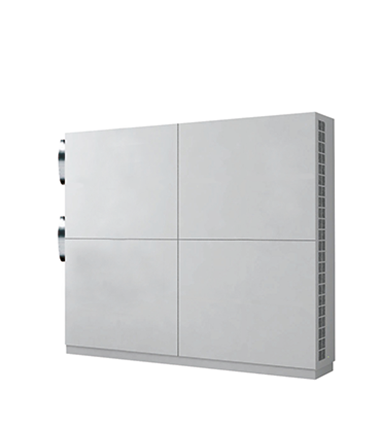

AM 1200 H

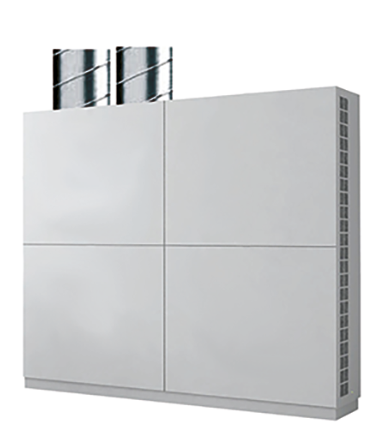

AM 1200 V

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.

Contact us if you want to know more about decentralized ventilation

Our competent sales team is ready to answer your questions and advise you on everything from dimensioning, configuration, installation, and planning - so you can find just the right unit for your needs.
