AME 900 F

At Airmaster, we believe it’s crucial to improve the indoor climate in schools and daycare centers. Improved indoor air quality benefi ts the health and wellbeing of children and can boost their learning. Our new product line, AME, is designed to make it easy, simple and aff ordable for schools and daycare centers to achieve a great indoor climate.

The AME 900 F is the first in the new AME series from Airmaster. It features a single variant for intake/exhaust and supply/exhaust, along with a few straightf orward options. This design ensures ease of handling, management, and operation, ideal for schools and daycares. In other words we have taken the complexity out of making great air.

Examples of applications:

Schools
Daycares
Institutions

Click to play

AME 900 F Brochure

Making great air easy, uncomplicated and affordable for schools and daycare centers.

Explore the AME 900 F further.

Download brochure

Technical description

This floor-standing ventilation unit is ideal for spacious areas like classrooms and playrooms. Its design in classic white seamlessly integrates into room layouts, whether positioned on the fl oor or discreetly between cabinets.

AME 900 F ensures efficient, noise-free air replacement with a maximum sound pressure level. It features high heat recovery efficiency and low power consumption, employing energy-efficient EC motors for silent operation and flexible adjustment. It is VDI 6022 certified, to ensure fulfillment of hygiene requirements.

AME 900 F comes standard equipped with a built-in CO₂ sensor and an LED indicator for warnings or alarms.

AME 900 F can be supplied with various customization options:

• Electric comfort heater • Smoke detector
• Electric preheater • Airlinq^© Online
• Condensate pump • Airlinq^© Online API
• Orbit control panel • MODBUS^© RTU RS485

Customization options

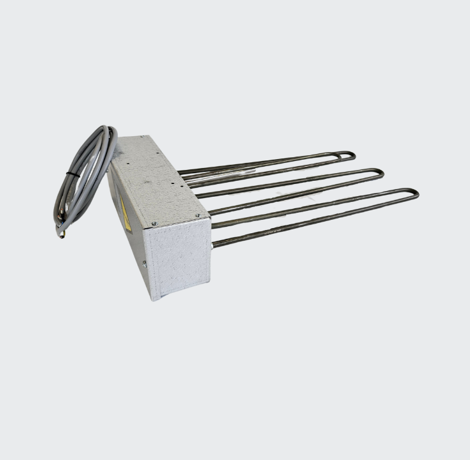

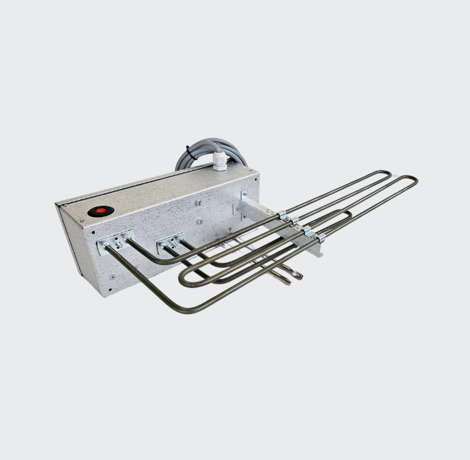

AME 900 F incorporates an electric comfort heating surface to support inlet air temperature.

AME 900 F with a electric preheater warms the outside air before it is supplied to the counterflow heat exchanger, thereby preventing ice formation in the heat exchanger.

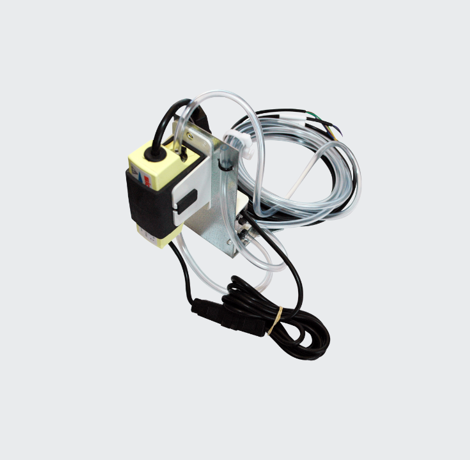

AME 900 F features automatic condensation management.

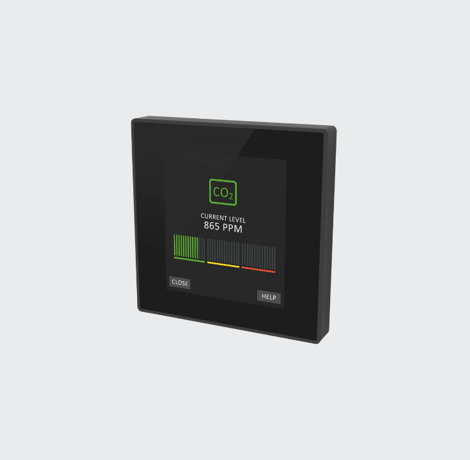

The Airlinq® Orbit control panel with touch function is user-friendly for navigating and setting operating parameters.

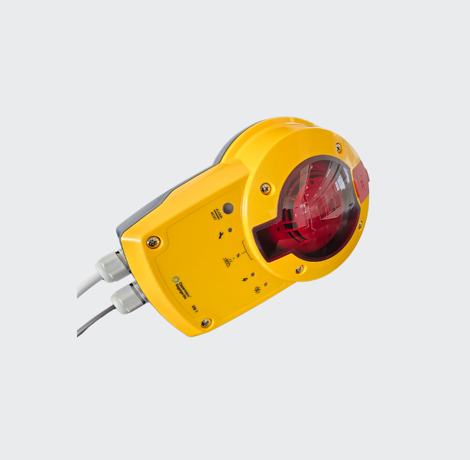

With an integrated EN54-27 approved smoke detector it is possible to prevent external smoke from being drawn into the ventilated room through the air handling unit.

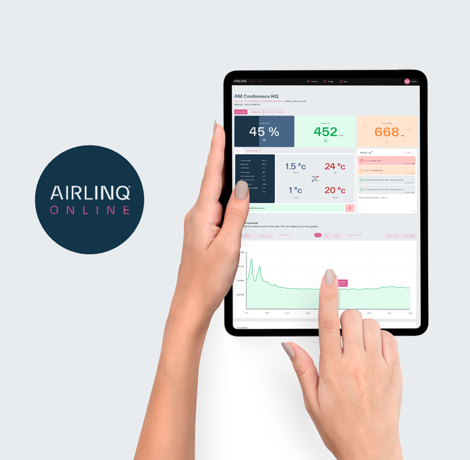

Airlinq© Online. Control and monitor ventilation in real-time from anywhere using your device. Optimize ventilation operations, manage energy usage, schedule service visits, reduce onsite visits, and more.

AME 900 F data

Technical data

Technical data	Filter class	30 dB(A)	35 dB(A)
* A 3-phase connection must be used if the electric preheating surface is chosen.
Maximum capacity	ePM₁₀ 50%	730 m³/h	915 m³/h
	ePM₁ 55%	715 m³/h	805 m³/h
Dimensions (WxHxD)		1150 x 2260 x 661 mm
Weight		281 kg
Duct connections		Ø315 mm
Supply voltage*		220-240V/50Hz, ~1N+PE or 220-240V/50Hz, ~3N+PE
Maximum power		354 W
Maximum current		2.76 A
Maximun fuse*		16 A, 1 phase, type B or 16 A, 3 phase, type B

Electric heating surface	Preheating surface	Comfort heating surface
Heat output	2300 W	1700 W
Nominal current	10.00 A	7.39 A

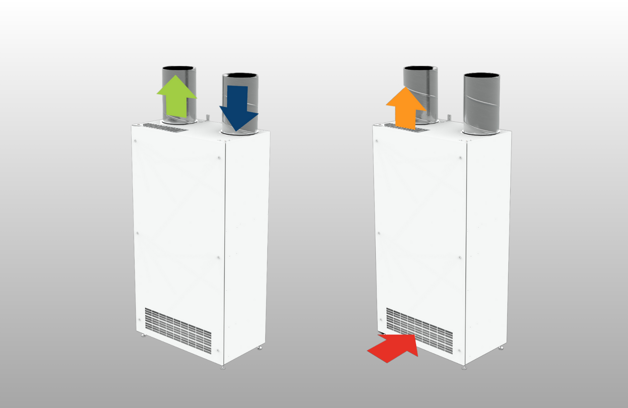

Versions

AME 900 F VV

AME 900 F is a vertical version with the supply and exhaust through the top of the unit.
The supply grill is also at the top of the unit and ventilates according to the principle of mixing ventilation

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.
