AM 800 | Decentralized ventilation | Medium-sized rooms | Airmaster

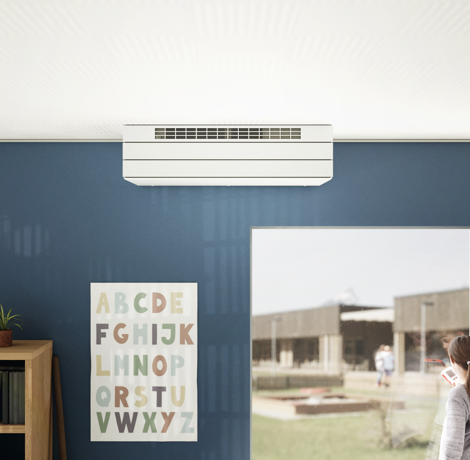

AM 800 is a particularly suitable ventilation solution for larger classrooms, meeting rooms and offices where efficient, noise-free air replacement is needed. Like all other Airmaster ventilation units, AM 800 can also be demand-controlled with CO₂ sensors that make the unit run to a weekly schedule AND CO₂ level, for example. This way, the room is only ventilated when neveded – and with the required airflow. The unit uses very little power, and with the demand-control, energy consumption is further reduced. AM 800 can be purchased with separate control, i.e. by means of a control panel, or for connection to a central control.

Depending on the room and the location of the unit, a horizontal model or a vertical model can be fitted. With the AM 800 H model, it is possible to connect the inverter-controlled CC 800 cooling module. It is also possible to pipe either exhaust or supply, or both exhaust and supply.

Examples of applications

Schools
Institutions
Offices
Meeting rooms

Technical data

See table

Air technical data	Filter class
	Supply air	Extract air	30 dB(A)		35 dB(A)
	ePM₁₀ 50%	ePM₁₀ 50%	650 m³/h		725 m³/h
	ePM₁ 55%	ePM₁₀ 50%	585 m³/h		653 m³/h
	ePM₁ 80%	ePM₁₀ 50%	520 m³/h		580 m³/h

Physical data	Width	Height	Depth	Weight, complet	Duct connections
AM 800	1910 mm	474 mm	916 mm	157 kg	Ø315 mm
AM 800+CC-modul	1910 mm	474 mm	1321 mm	258 kg	Ø315 mm


Electrical data	Supply voltage	Nominal current	Nominal power	Maximum insurance
AM 800	220-240V/50 Hz, ~ 1N+PE	1,1 A	156 W	16 A, 1 fase
AM 800 CC-modul		6,8 A	1110 W

Heating surface	Preheating surface (electric)	Comfort heating surface (electric)	Comfort heating surface(water)
	1500 W	1000 W	1379 W ved 60/40°C
	6,5 A	4,4 A

Cooling module (CC)	Nominal cooling capacity	Refrigerant	Nominal EER
	5240 W	410a	4,72

Return/intake

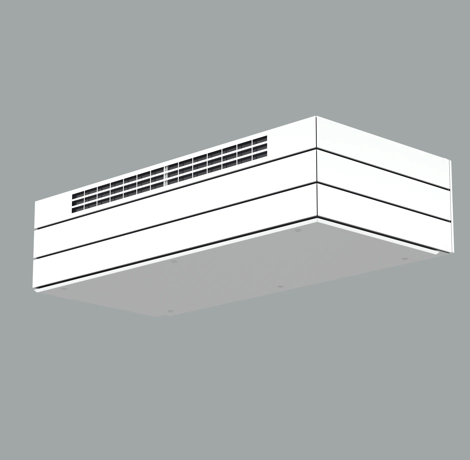

AM 800 H

AM 800 V

AM 800 HRE

The AM 800 HRE is a horizontal version where the exhaust and supply are piped backwards from the unit. The supply and exhaust are rectangular. Can be combined with all inlet/extraction variants.

Intake/exhaust

AM 800 T

AM 800 TDE

AM 800 C

AM 800 CDE

AM 800 B

AM 800 BDE

AM 800 DIDE

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.
