AM 300 | Efficient counterflow heat exchanger | Smaller rooms

The new AM 300 is a decentralised ventilation unit of exceptional quality, offering a high level of flexibility and carefully considered, user-friendly technical details. Low energy consumption and environmental sustainability have also been in focus.

The new AM 300 is a continuation of the existing AM 300. All the best features of the existing model have been preserved: EC motors, efficient countercurrent heat exchanger, automation, to name but a few. However, the AM 300 has been updated and improved on a long list of points, so it is safe for us to say that the product takes decentralised ventilation soundly into the next phase of the concept – decentralised ventilation for comfort use.

Like all other Airmaster ventilation units, AM 300 can be controlled from a separate control panel, but it can also be controlled via Airmaster’s “Airmaster Airlinq Online” IoT platform or connected to a BMS system.

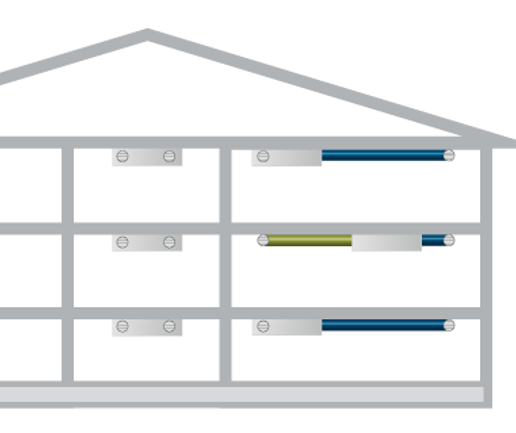

Full flexibility on the façade and inside the building

Use and installation of the new AM 300 are extremely flexible.

The supply and exhaust can be positioned in the back, the top or the side of the unit.
Ducted supply air and ducted exhaust air can be supplied.
A neat, uniform look can be achieved externally with the side supply and exhaust, regardless of the location of the unit.

Inside, it can be made to fit around windows and beams, allowing you to take the design and layout of the rooms into account.

Variations

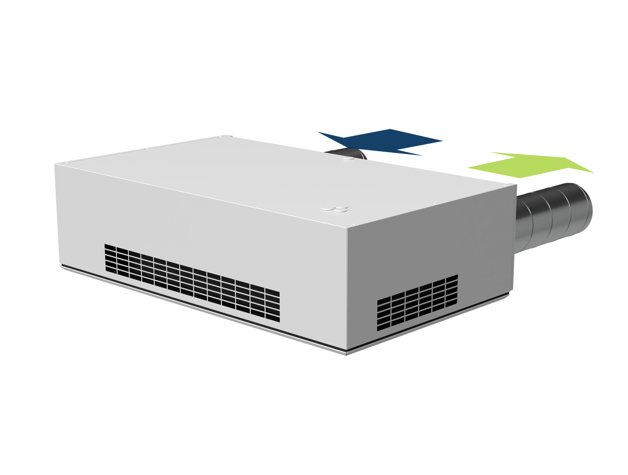

AM 300 HH

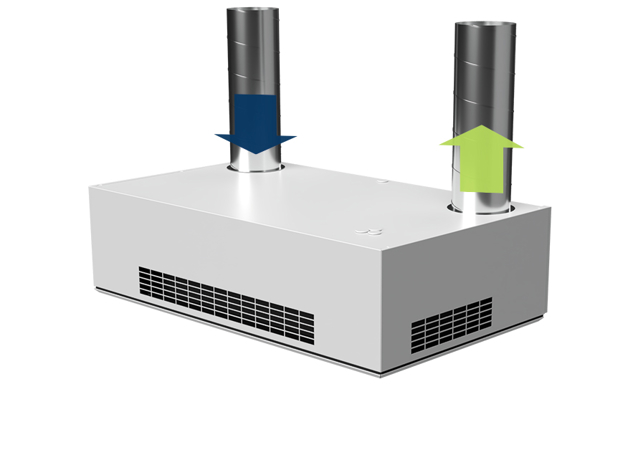

AM 300 VV

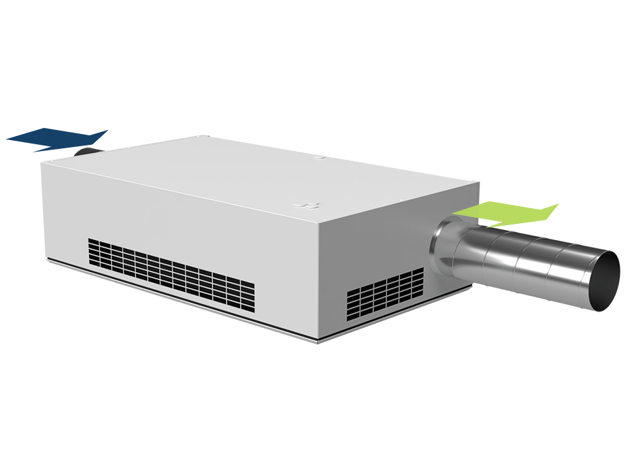

AM 300 SS

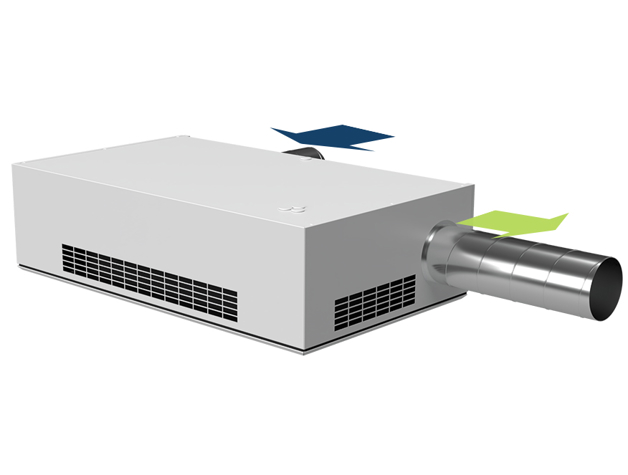

AM 300 SH

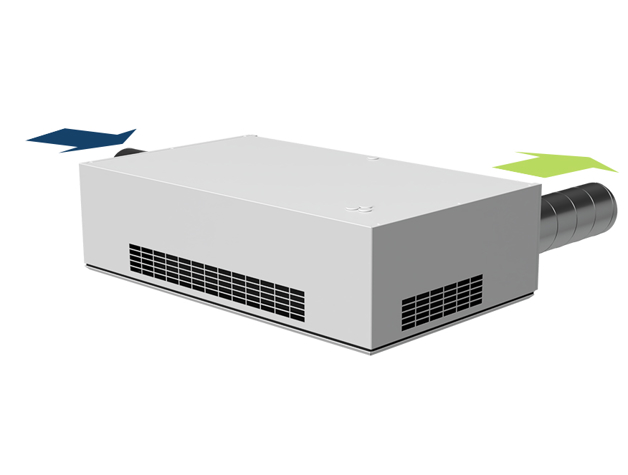

AM 300 HS

Technical data

See table

Air technical data	Filter class
	Supply air	Extract air	30 dB(A)	35 dB(A)
	ePM₁₀ 50%	ePM₁₀ 50%	210 m³/h	275 m³/h
	ePM₁ 55%	ePM₁₀ 50%	205 m³/h	270 m³/h
	ePM₁ 80%	ePM₁₀ 50%	180 m³/h	240 m³/h

Physical data	Width	Height	Depth	Weight, complet	Duct connections
AM300	1180 mm	344 mm	705 mm	85 kg	Ø160 mm

Electrical data	Supply voltage	Maximum voltage	Maximum power	Maximum insurance
AM300	220-240V/50 Hz, ~ 1N+PE	1,45 A	175 W	13 A, 1 fase

Heating surface	Preheating surface (electric)	Comfort heating surface (electric)
	1000 W	500 W
	4,35 A	2,17 A

Inside the building

The inlet grill is now always positioned at the bottom of the front of the unit. A new inlet system, where the upward inlet ensures proper air diffusion, provides draught-free ventilation.

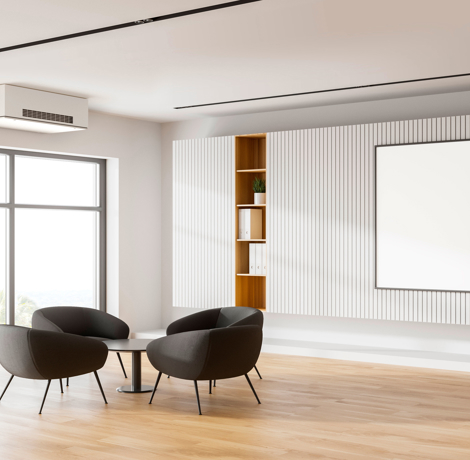

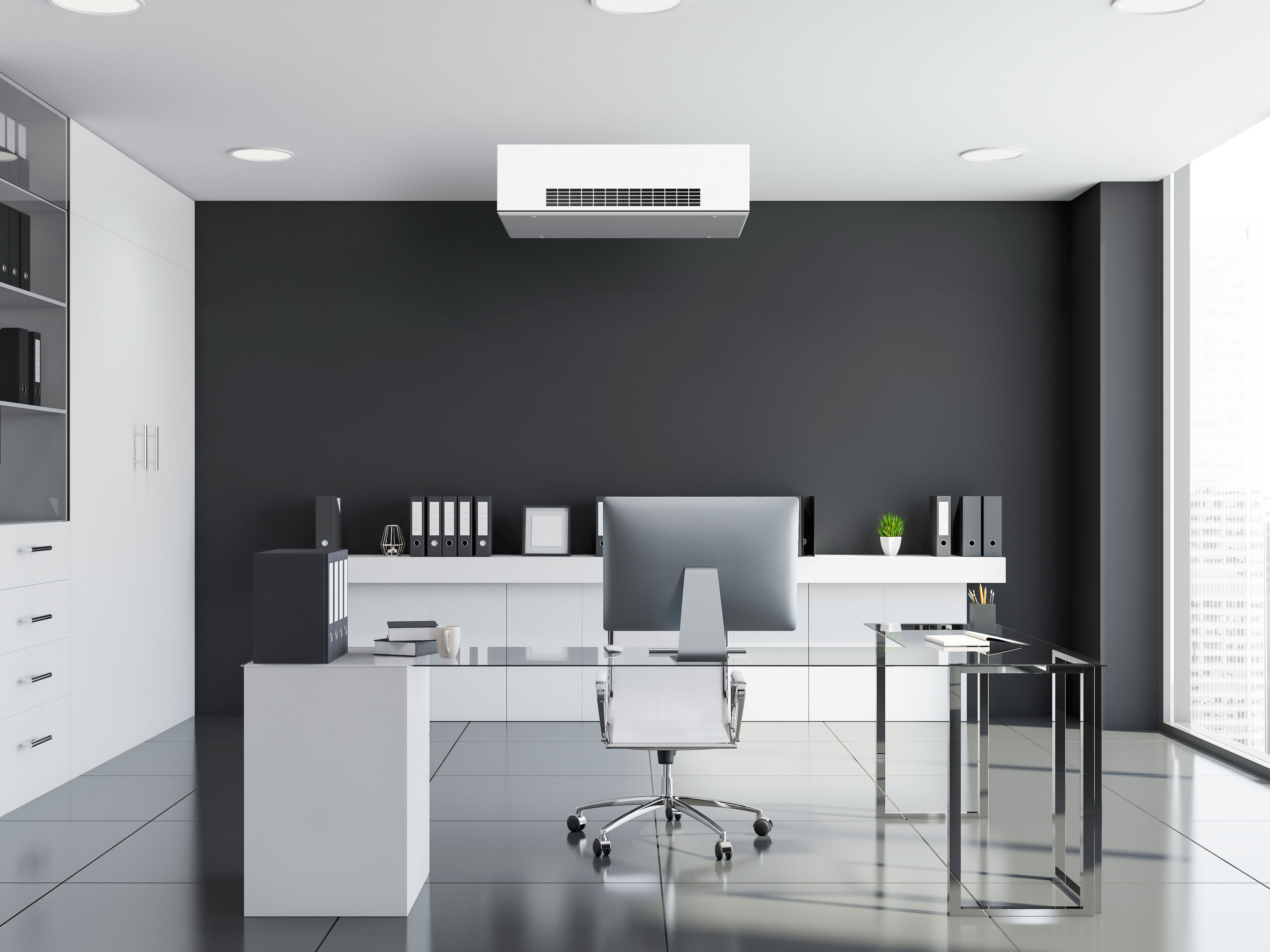

The same high quality of air distribution is achieved in the room whether the new AM 300 is installed under the ceiling or partially integrated into it. Under normal circumstances, the unit can be lowered up to 50 cm from the ceiling and continue to maintain a draught-free inlet.

Model variants inlet/extract

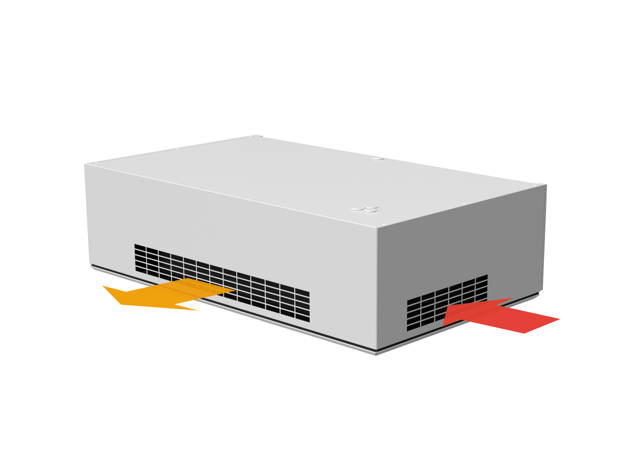

AM 300 BB

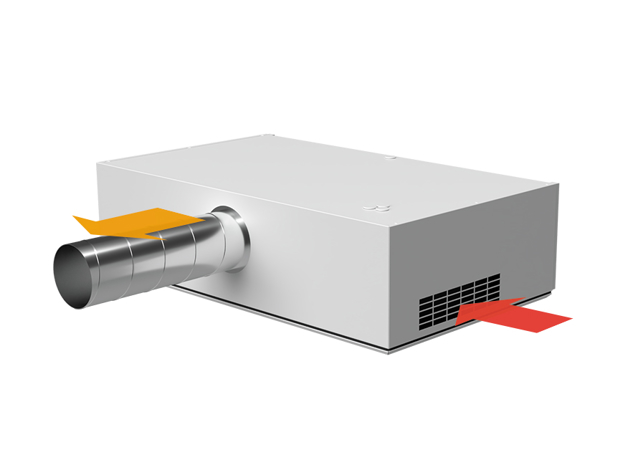

AM 300 DIB

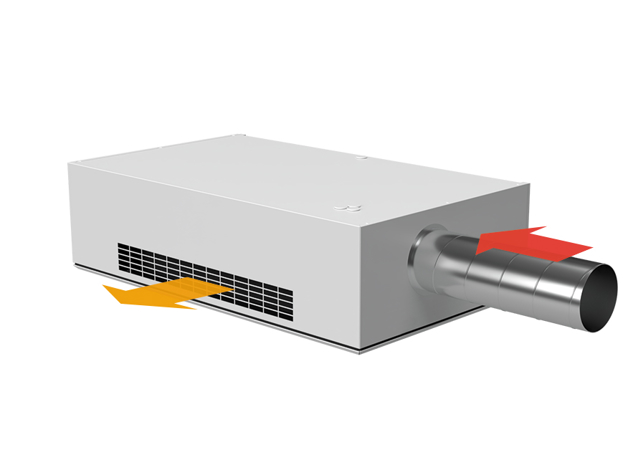

AM 300 BDE

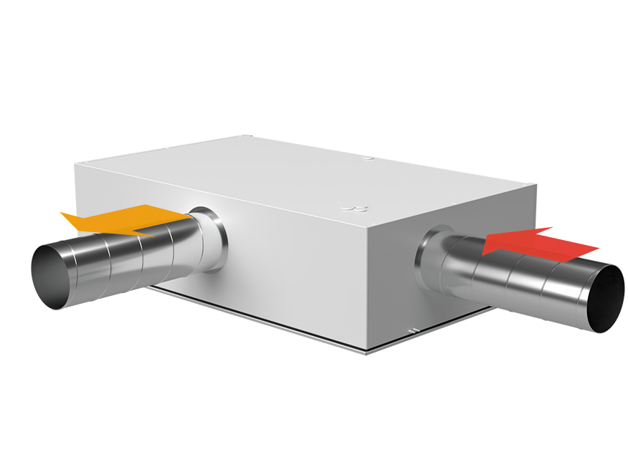

AM 300 DIDE

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.
