AM 500 | Decentralized ventilation suitable for medium-sized classrooms

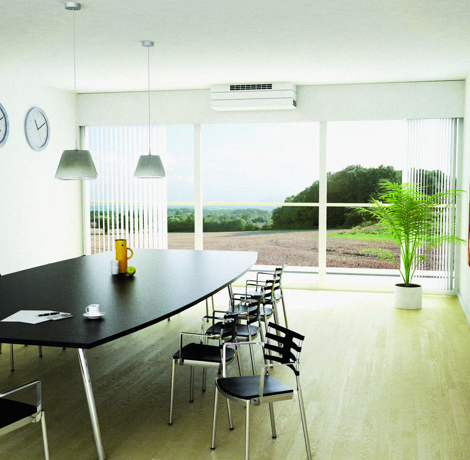

AM 500 is designed to ventilate medium-sized rooms. Depending on the room and the location of the unit, a horizontal model or a vertical model can be fitted. With the AM 500 H model, it is possible to connect the inverter-controlled CC 500 cooling module. It is also possible to pipe either exhaust or supply, or both exhaust and supply. The unit is available with a separate control panel, but it can also be controlled via Airmaster’s “Airmaster Airlinq Online” IoT platform or connected to a BMS system.

AM 500 is a balanced decentralised ventilation unit with high level of heat recovery. The ventilation unit is energy efficient and creates and maintains a good indoor climate in a financially responsible way.

Examples of applications

Offices
Meeting rooms

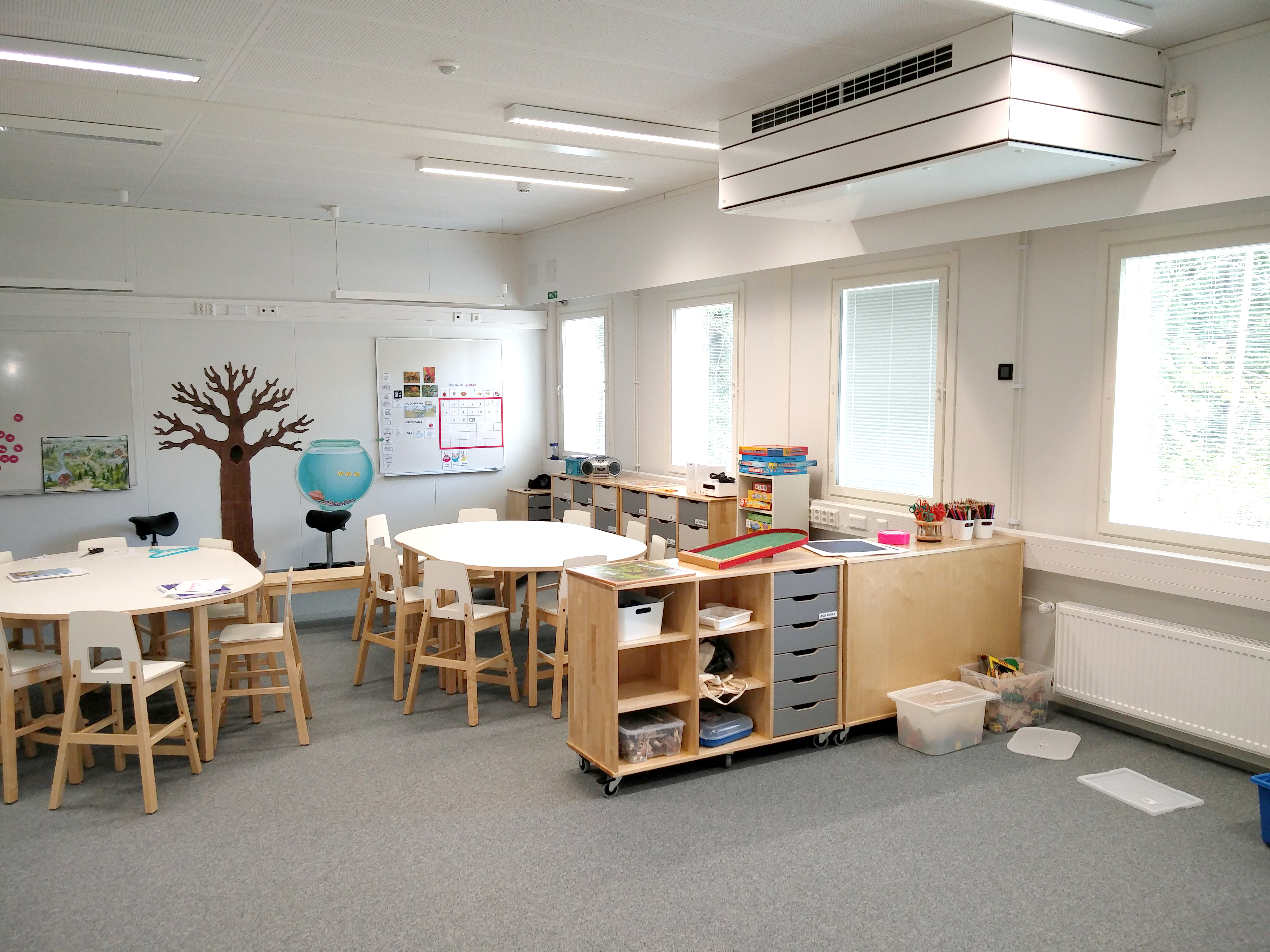

Schools and institutions
Modular buildings

Technical data

See table

Air technical data	Filter class
	Supply air	Extract air	30 dB(A)	35 dB(A)
	ePM₁₀ 50%	ePM₁₀ 50%	430 m³/h	490 m³/h
	ePM₁ 55%	ePM₁₀ 50%	387 m³/h	441 m³/h
	ePM₁ 80%	ePM₁₀ 50%	344 m³/h	392 m³/h

Physical data	Width	Height	Depth	Weight, complet	Duct connections
AM500	1600 mm	439 mm	779 mm	108 kg	Ø250 mm
AM500+CC-modul	1600 mm	439 mm	1185 mm	191 kg	Ø250 mm


Electrical data	Supply voltage	Nominal current	Nominal power	Maximum insurance
AM500	220-240V/50 Hz, ~ 1N+PE	1,1 A	132 W	13 A, 1 fase
AM 500 + CC-modul		6,4 A	1040 W

Heating surface	Preheating surface (electric)	Comfort heating surface (electric)	Comfort heating surface(water)
	1000 W	500 W	856 W ved 60/40°C
	4,4 A	2,6 A

Module (CC)	Nominal cooling capacity	Refrigerant	Nominal EER
	3280 W	R410a	3,16

Versioner return/intake

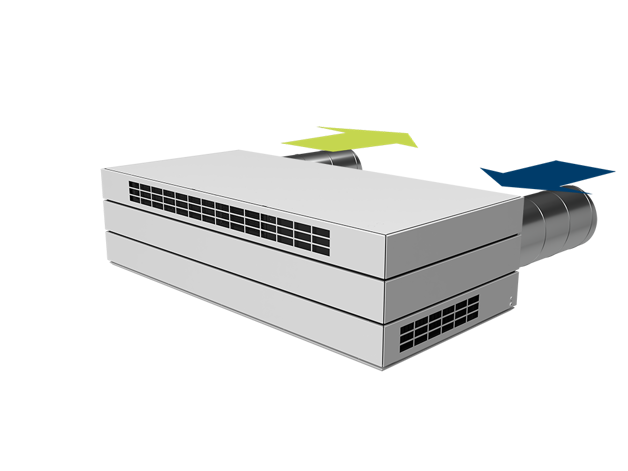

AM 500 H

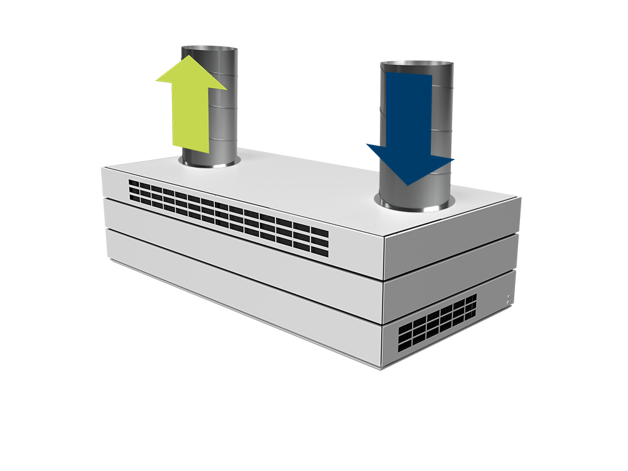

AM 500 V

AM 500 HRE

The AM 500 HRE is a horizontal version where the exhaust and supply are piped backwards from the unit. The supply and exhaust are rectangular. Can be combined with all inlet/extraction variants.

Versions intake/exhaust

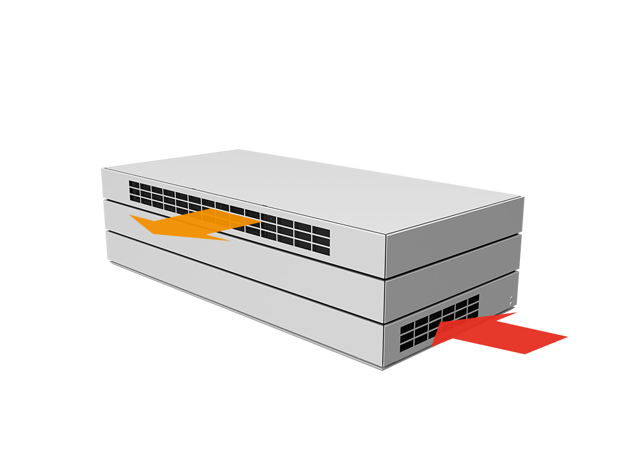

AM 500 T

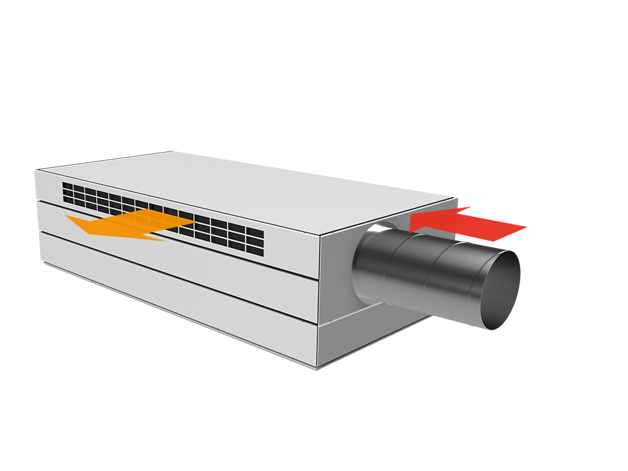

AM 500 TDE

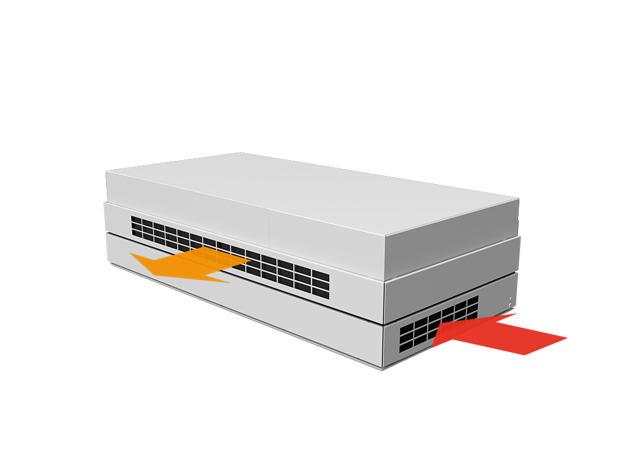

AM 500 C

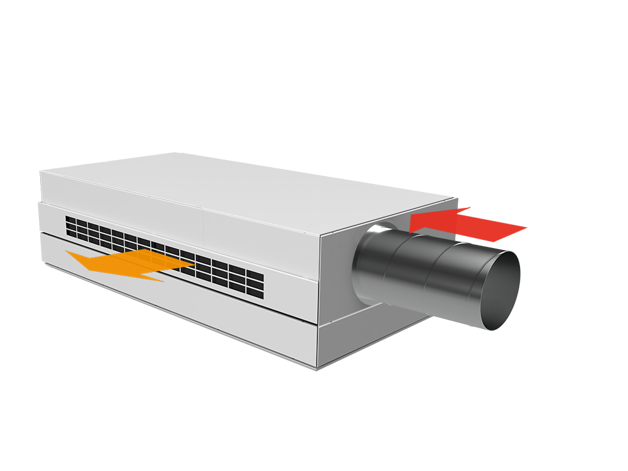

AM 500 CDE

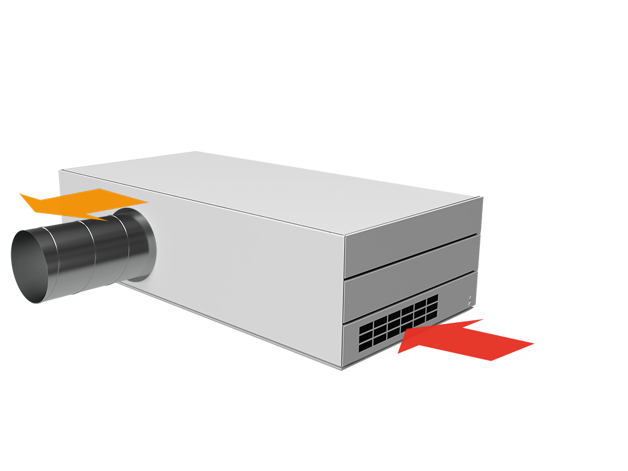

AM 500 DIB

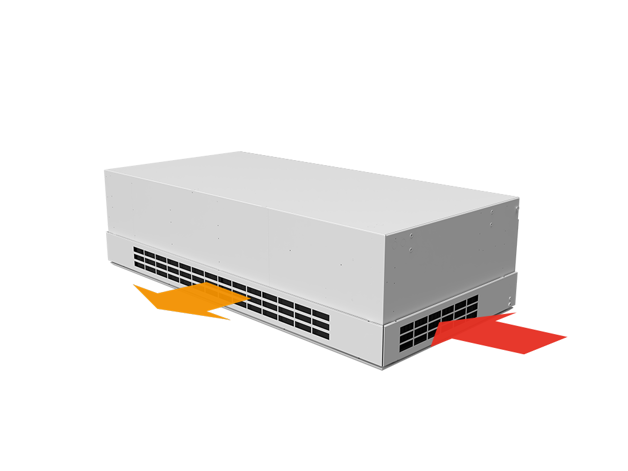

AM 500 B

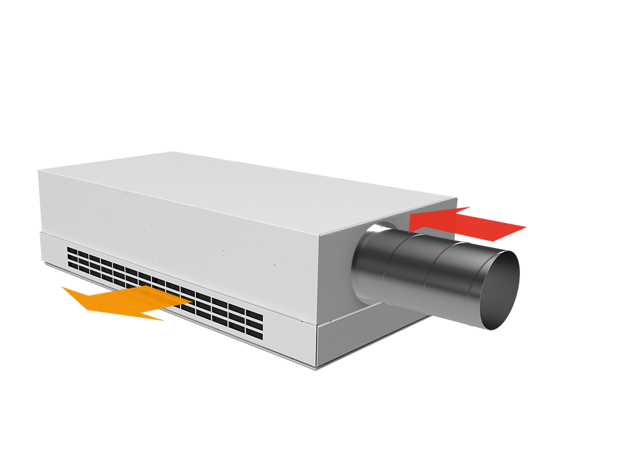

AM 500 BDE

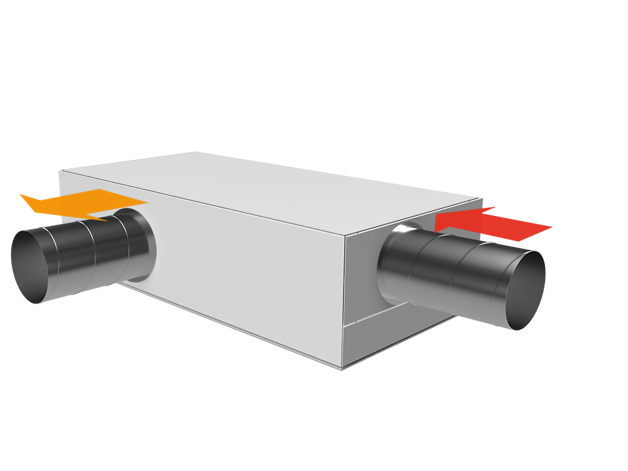

AM 500 DIDE

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.
